Hydrostatic Pressure in Various Environments

This page delves deeper into hydrostatic pressure calculations, exploring scenarios in different environments such as water tanks and even on other planets. It provides practical examples that demonstrate the application of hydrostatic pressure formulas in real-world situations.

The page begins with a problem involving a diver in a saltwater tank, calculating the absolute pressure at a certain depth. It then progresses to more complex scenarios, including determining fluid density from pressure measurements and calculating hydrostatic pressure on Mars.

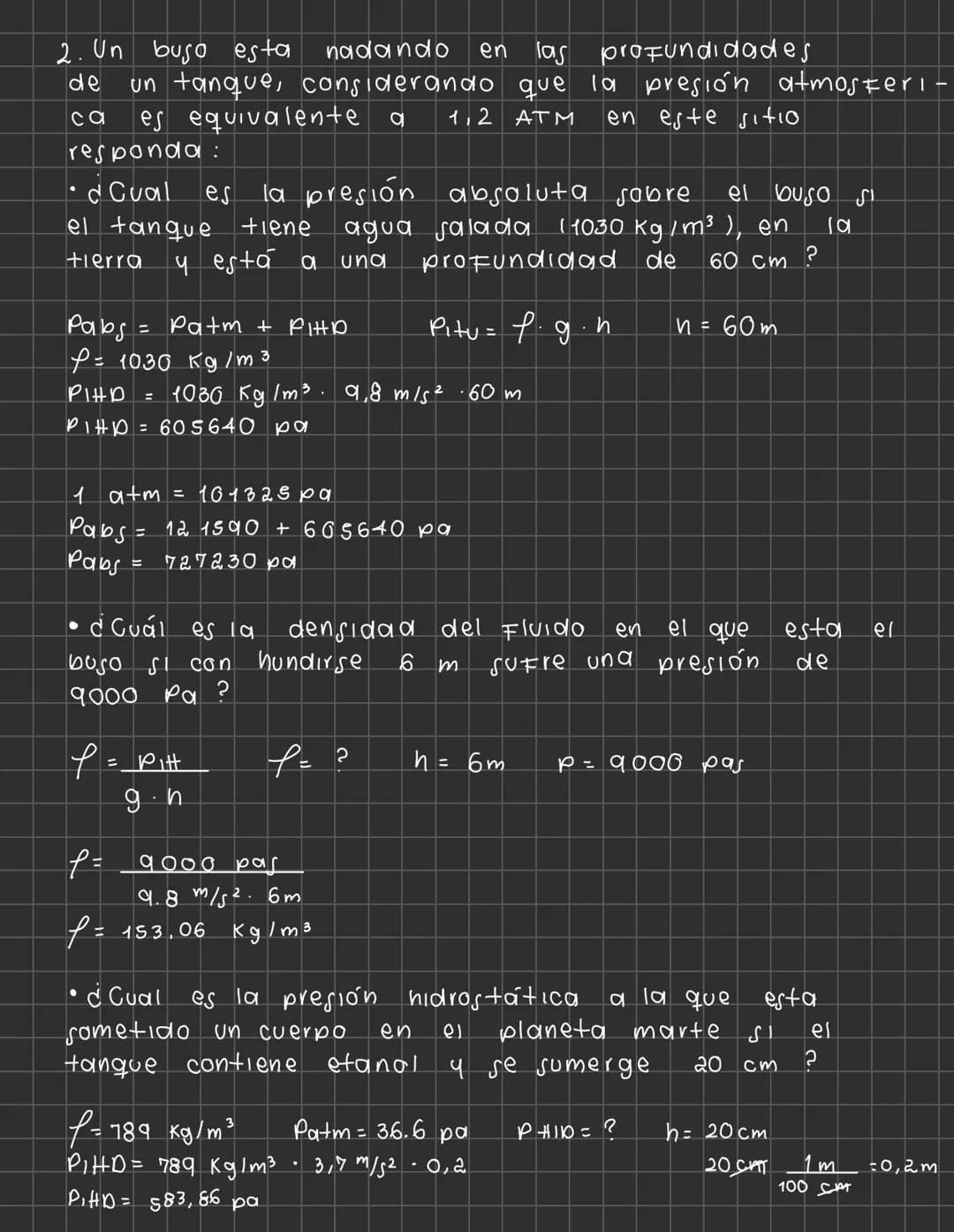

Example: A diver in a saltwater tank $density 1030 kg/m³$ at a depth of 60 cm experiences an absolute pressure of 727,230 Pa, considering atmospheric pressure of 1.2 ATM.

Vocabulary: Densidad de fluidos $Fluid density$ - The mass per unit volume of a fluid, crucial in hydrostatic pressure calculations.

Highlight: The page emphasizes the importance of considering atmospheric pressure when calculating absolute pressure in fluid environments.

Definition: Absolute Pressure = Atmospheric Pressure + Hydrostatic Pressure

The page concludes with a problem set on Mars, demonstrating how hydrostatic pressure principles apply even in extraterrestrial environments with different gravitational forces and atmospheric conditions. This showcases the universal applicability of these physical laws.

Electrostatic Forces and Charge Interactions

This page focuses on electrostatic forces and charge interactions, providing a detailed example of calculating forces between multiple charged particles arranged in a square configuration. It demonstrates the application of Coulomb's law in complex multi-particle systems.

The problem presented involves calculating the total force on a central charge surrounded by other charges at the corners of a square. The page walks through the step-by-step solution, breaking down the problem into manageable components.

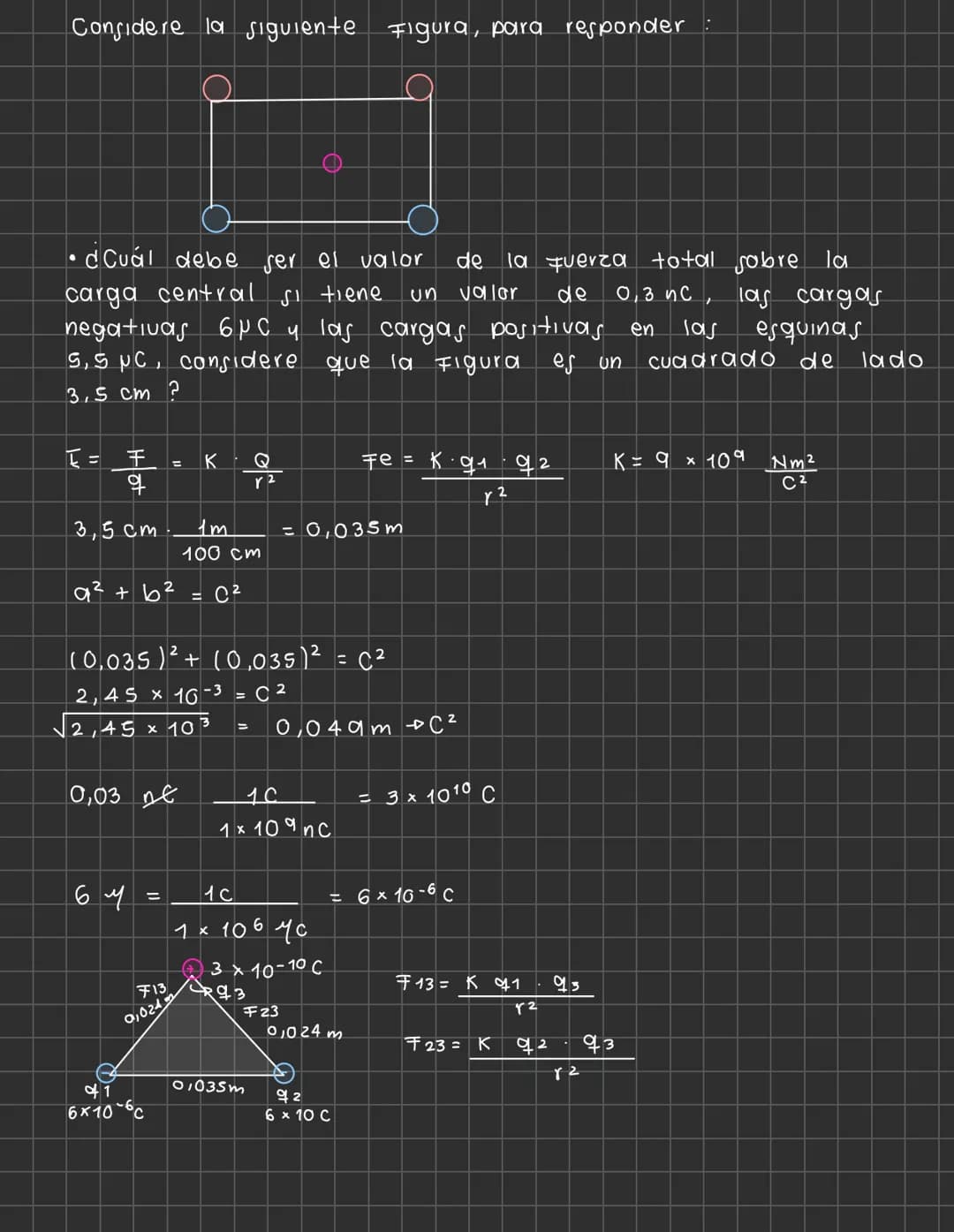

Example: A central charge of 0.3 nC is surrounded by negative charges of 6 μC and positive charges of 5.5 nC at the corners of a 3.5 cm square. The total force on the central charge is calculated.

Vocabulary: Fuerza y presión en los fluidos $Force and pressure in fluids$ - While this page focuses on electrostatic forces, it relates to the broader concept of forces in physics.

Highlight: The problem demonstrates the vector nature of electrostatic forces, requiring the consideration of both magnitude and direction when calculating the total force.

Definition: Coulomb's Law: F = k$q₁q₂$/r², where k is Coulomb's constant, q₁ and q₂ are the magnitudes of the charges, and r is the distance between them.

The page concludes by exploring how changing the distance between charges affects the force, reinforcing the inverse square relationship in Coulomb's law. This practical application helps students understand the behavior of electrostatic forces in various configurations.

Advanced Electrostatic Force Calculations

This page continues the exploration of electrostatic forces, focusing on more advanced calculations and problem-solving techniques. It builds upon the concepts introduced in the previous page, providing students with a deeper understanding of charge interactions and force calculations.

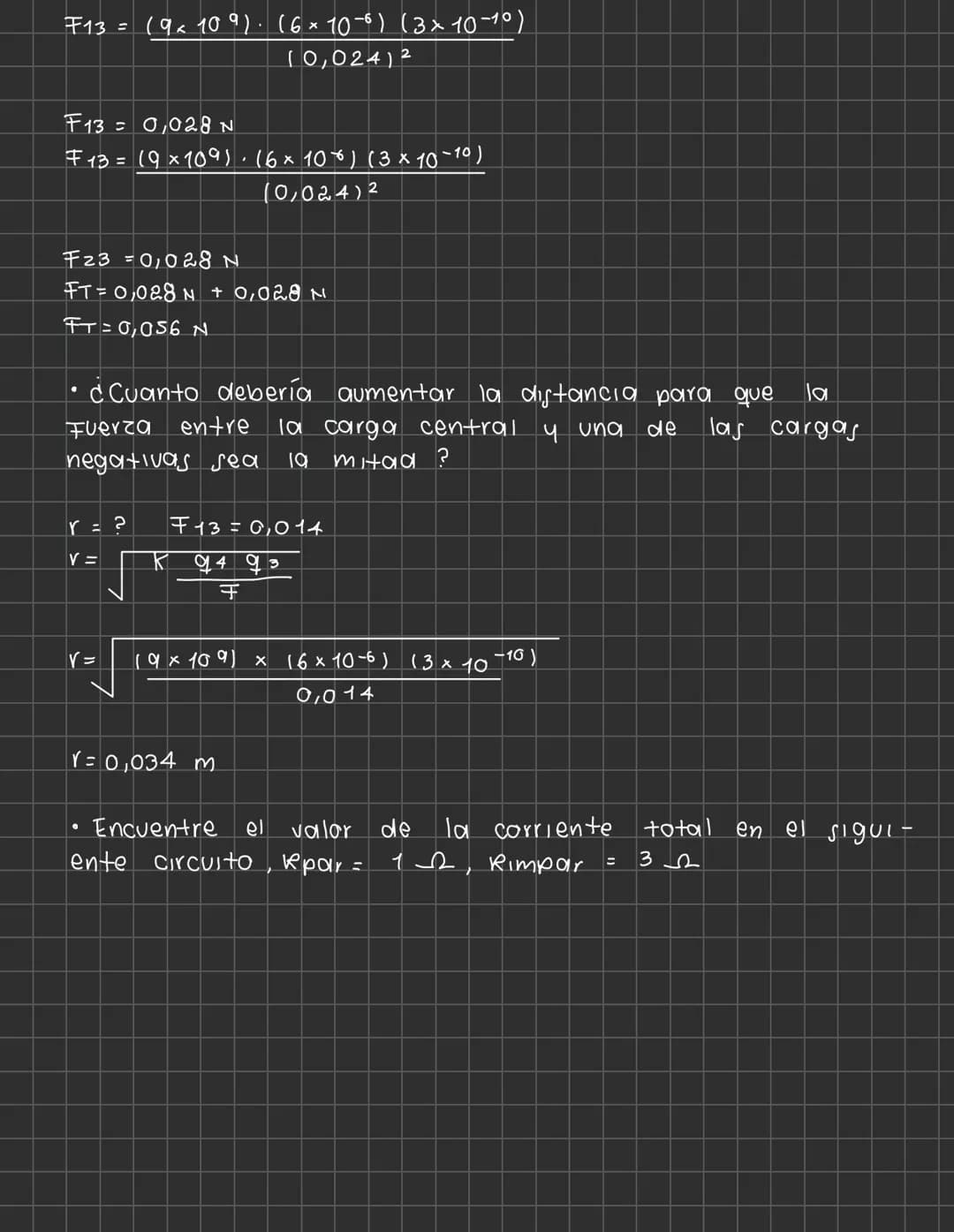

The page begins by completing the force calculations from the previous problem, determining the total force on the central charge. It then presents a new problem that asks students to calculate how much the distance between charges should increase to halve the force between the central charge and one of the negative charges.

Example: The total force on the central charge is calculated to be 0.056 N. To halve the force between the central charge and a negative charge, the distance must increase to 0.034 m.

Vocabulary: Fuerza y presión ejemplos $Force and pressure examples$ - This page provides concrete examples of force calculations in electrostatic systems.

Highlight: The problem demonstrates how changing the distance between charges affects the electrostatic force, illustrating the inverse square relationship in Coulomb's law.

Definition: Inverse Square Law: The strength of an electrostatic force is inversely proportional to the square of the distance between the charges.

The page concludes by introducing a new topic: electrical circuits. It presents a complex circuit diagram and asks students to find the total current, setting the stage for the next section of the guide.

Introduction to Electrical Circuits and Resistance Calculations

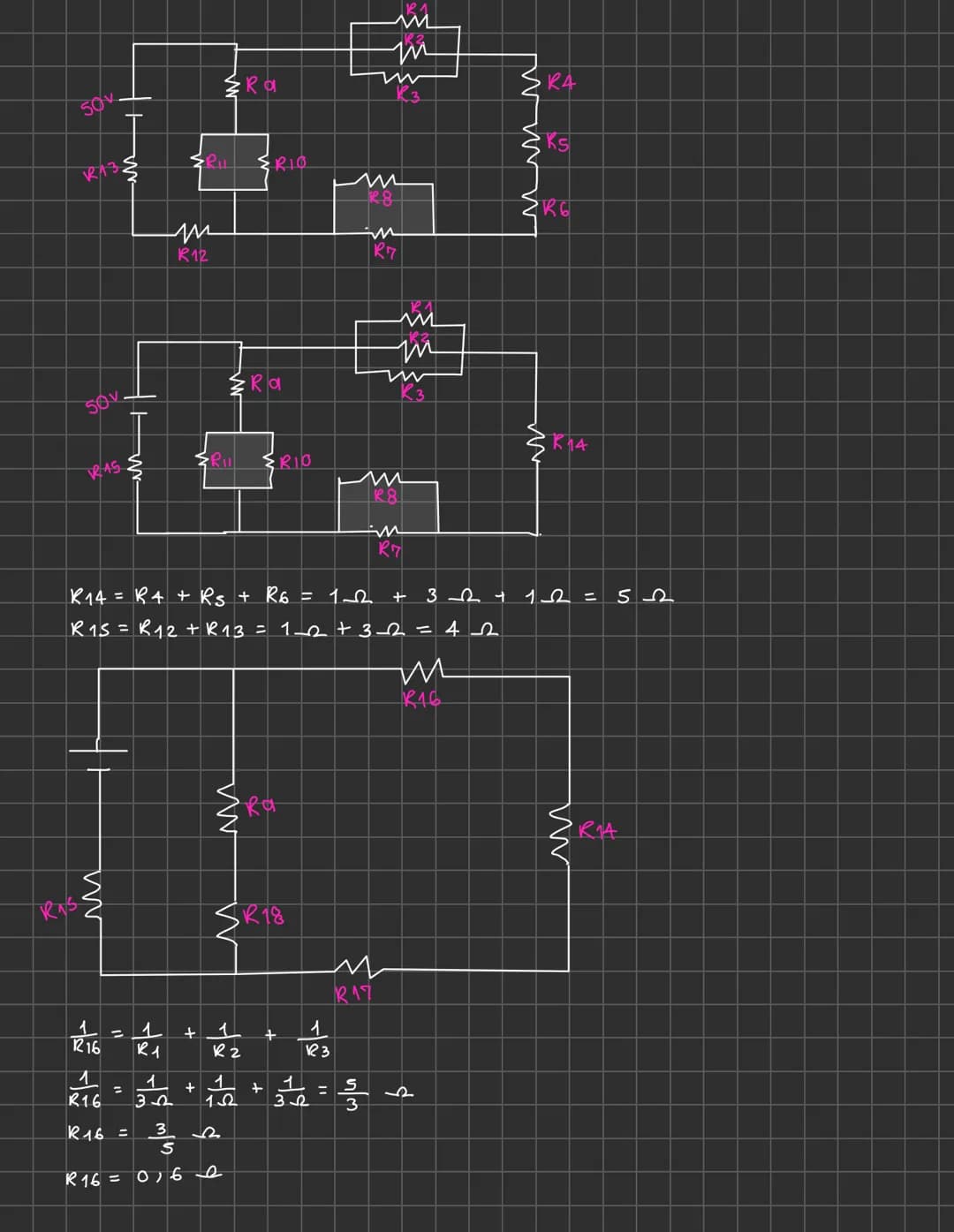

This page marks a transition from electrostatic forces to electrical circuits, introducing students to circuit analysis and resistance calculations. It presents a complex circuit diagram and guides students through the process of simplifying the circuit to calculate the total resistance and current.

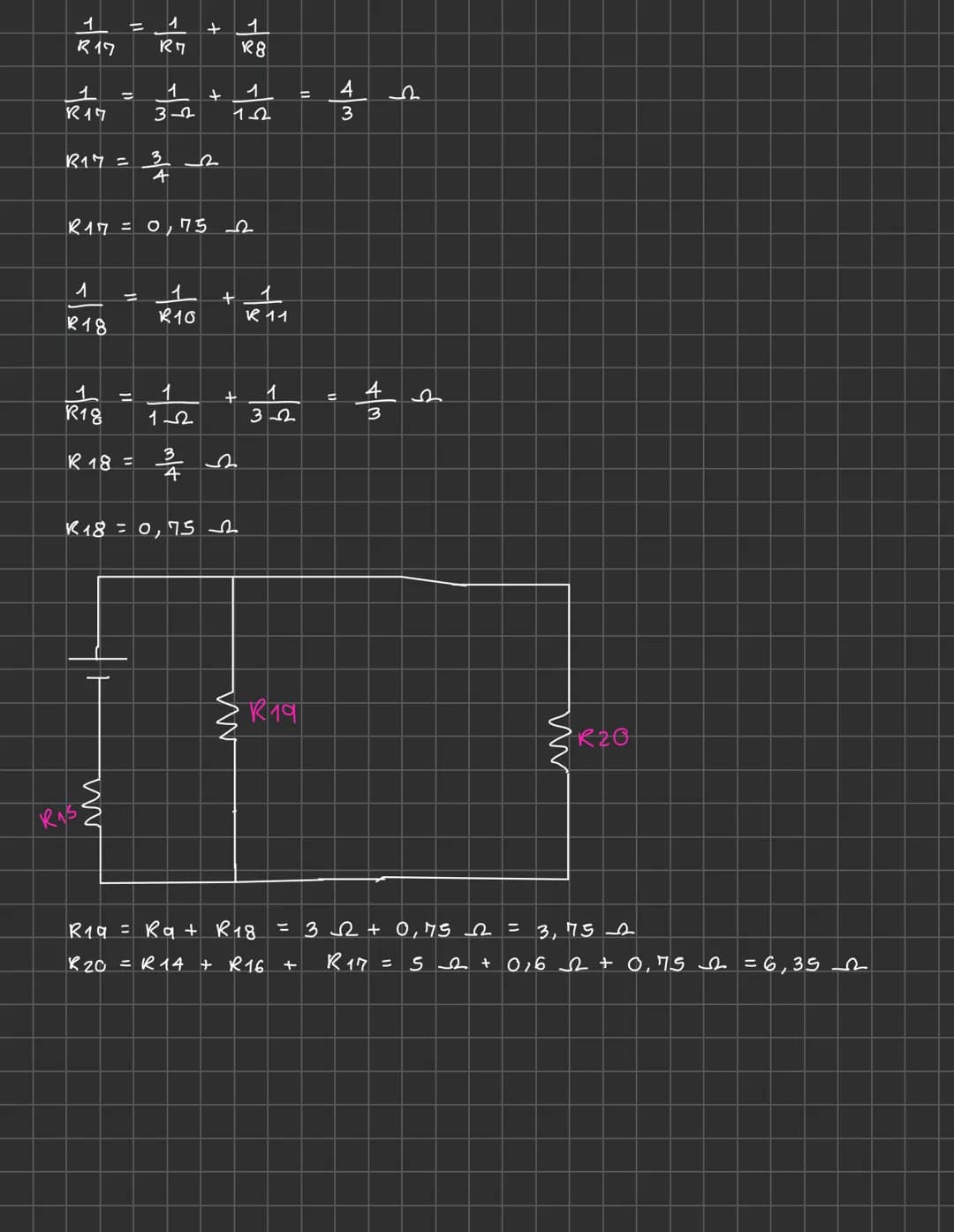

The page focuses on a circuit with multiple resistors connected in series and parallel. It demonstrates how to systematically simplify the circuit by combining resistors and applying the rules for series and parallel connections.

Example: A complex circuit with resistors ranging from 1Ω to 32Ω is simplified step-by-step to calculate the total resistance and current.

Vocabulary: Propiedades de los fluidos $Properties of fluids$ - While this page focuses on electrical properties, it relates to the broader concept of understanding material properties in physics.

Highlight: The problem emphasizes the importance of methodical problem-solving in circuit analysis, breaking down a complex circuit into simpler components.

Definition: Ohm's Law: V = IR, where V is voltage, I is current, and R is resistance.

The page concludes by calculating the total current in the circuit using Ohm's law, demonstrating how the principles of circuit analysis can be applied to solve real-world electrical problems. This practical application helps students understand the relationship between voltage, current, and resistance in complex circuits.

Advanced Circuit Analysis and Current Calculations

This page continues the exploration of electrical circuits, focusing on more advanced analysis techniques and current calculations. It builds upon the concepts introduced in the previous page, providing students with a deeper understanding of complex circuit configurations and problem-solving strategies.

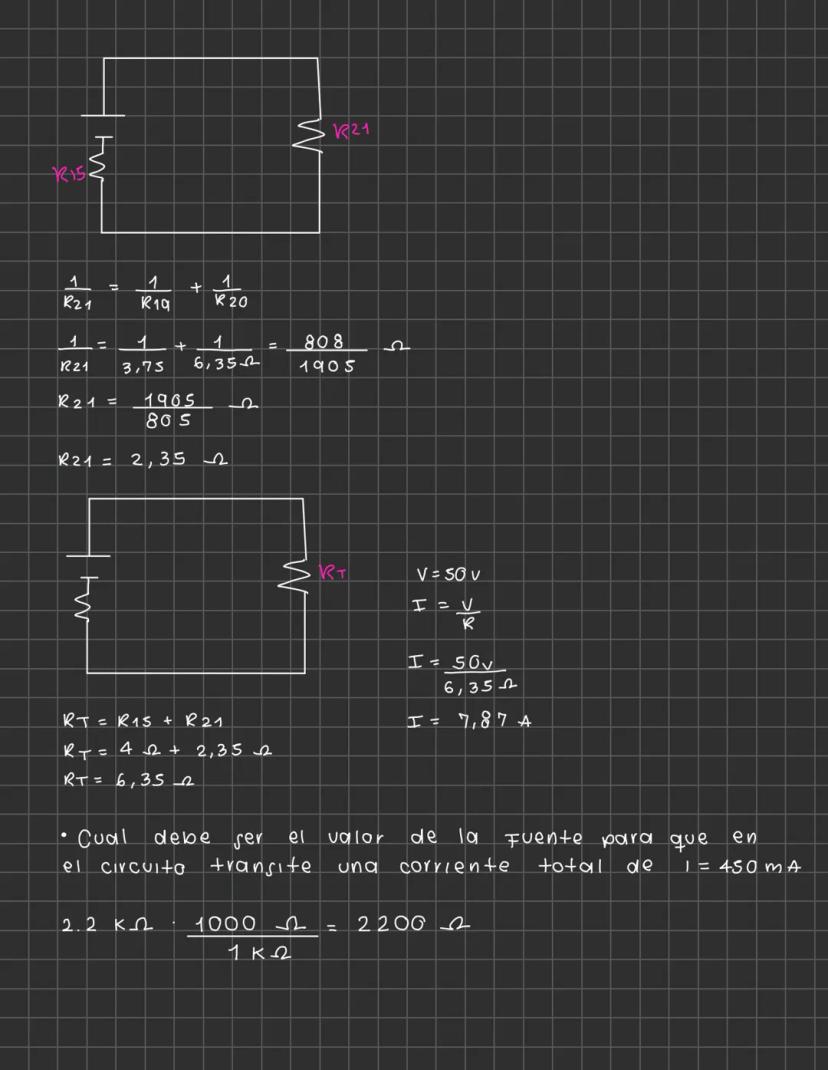

The page begins by completing the current calculation from the previous problem, determining the total current in the complex circuit. It then presents a new problem that asks students to calculate the required voltage source for a given current in a different circuit configuration.

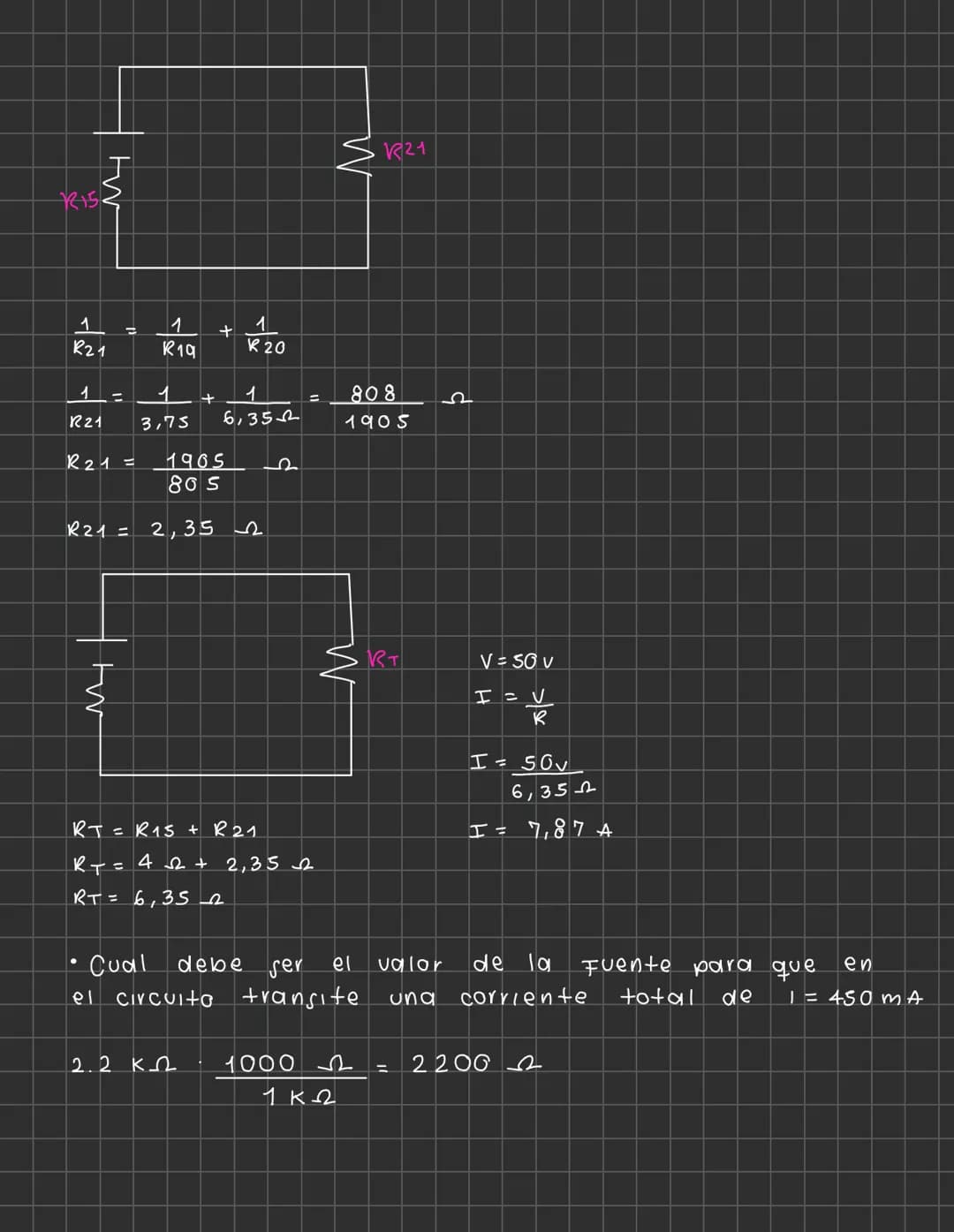

Example: The total current in the complex circuit is calculated to be 7.87 A. A new circuit problem is presented to find the voltage source needed for a current of 450 mA.

Vocabulary: Ejercicios de presión resueltos pdf $Solved pressure exercises pdf$ - While this page focuses on electrical circuits, the problem-solving techniques are applicable to various physics problems, including pressure calculations.

Highlight: The problem demonstrates the importance of systematically analyzing circuit components and applying Ohm's law to determine unknown values.

Definition: Kirchhoff's Current Law: The sum of currents entering a node is equal to the sum of currents leaving that node.

The page concludes by introducing the new circuit problem, setting up the equations needed to solve for the required voltage source. This prepares students for the final section of the guide, where they will complete this complex circuit analysis.

Complex Circuit Analysis and Equivalent Resistance Calculations

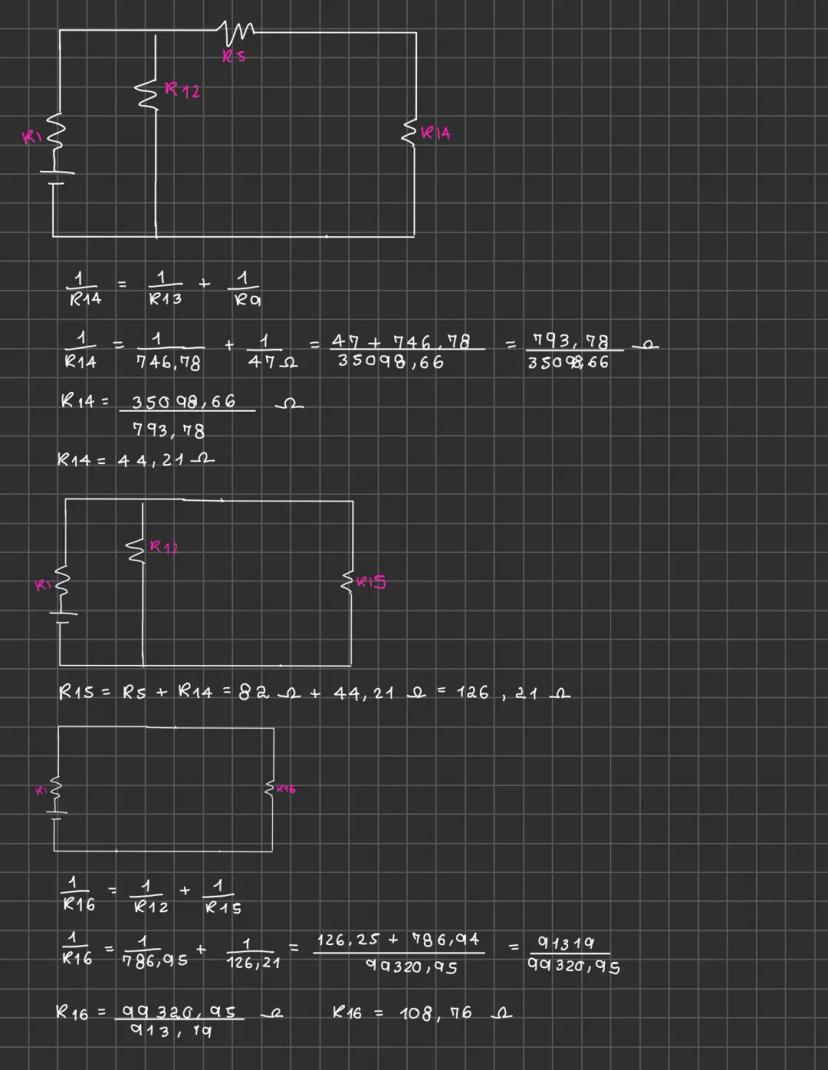

This page delves into advanced circuit analysis techniques, focusing on calculating equivalent resistances in complex circuit configurations. It provides a step-by-step approach to simplifying intricate circuits with multiple series and parallel connections.

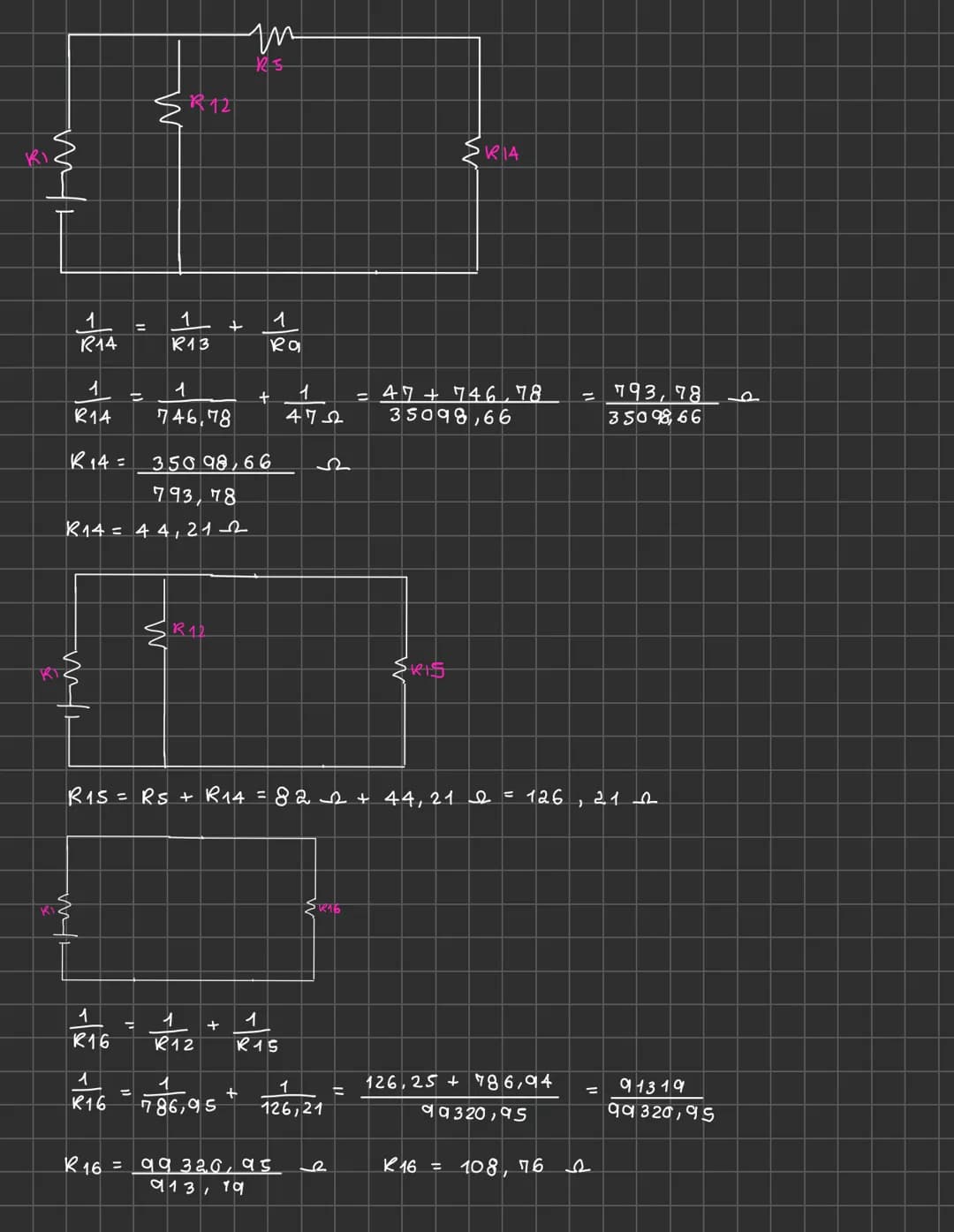

The page continues the problem introduced in the previous section, guiding students through the process of determining the equivalent resistance of various circuit branches. It demonstrates how to combine resistors in series and parallel, and how to use the reciprocal method for parallel resistances.

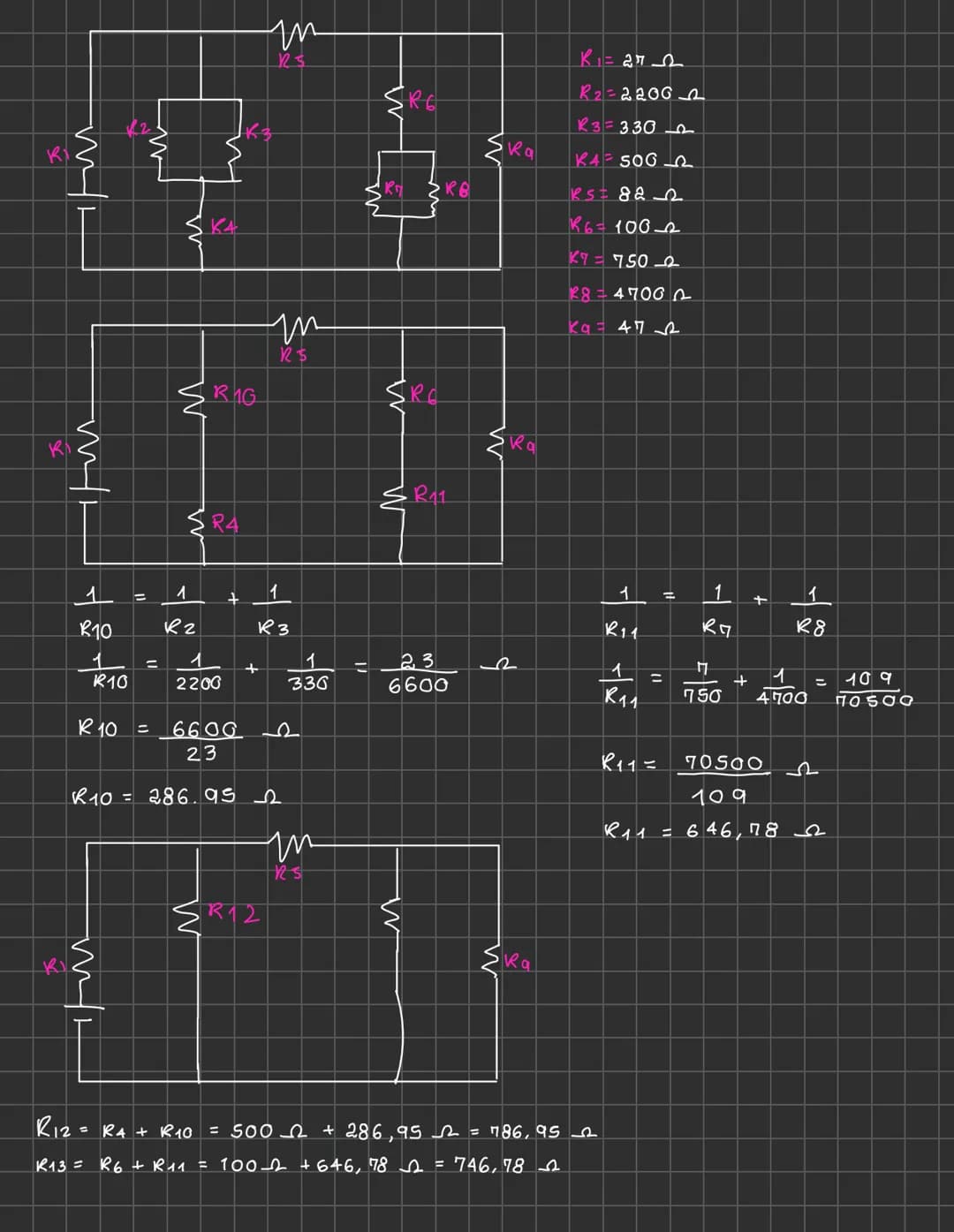

Example: A complex circuit with resistors ranging from 47Ω to 4700Ω is analyzed to find the equivalent resistance of different branches.

Vocabulary: Densidad de líquidos ejemplos $Liquid density examples$ - While this page focuses on electrical resistance, the concept of analyzing complex systems is applicable to fluid dynamics and density calculations as well.

Highlight: The problem emphasizes the importance of breaking down complex circuits into manageable subsections and systematically combining resistances.

Definition: Equivalent Resistance: The single resistance that can replace a combination of resistors while maintaining the same current and voltage characteristics.

The page concludes by calculating the equivalent resistance for several branches of the circuit, preparing for the final step of determining the total circuit resistance and required voltage source in the next section.

Final Circuit Analysis and Voltage Source Calculation

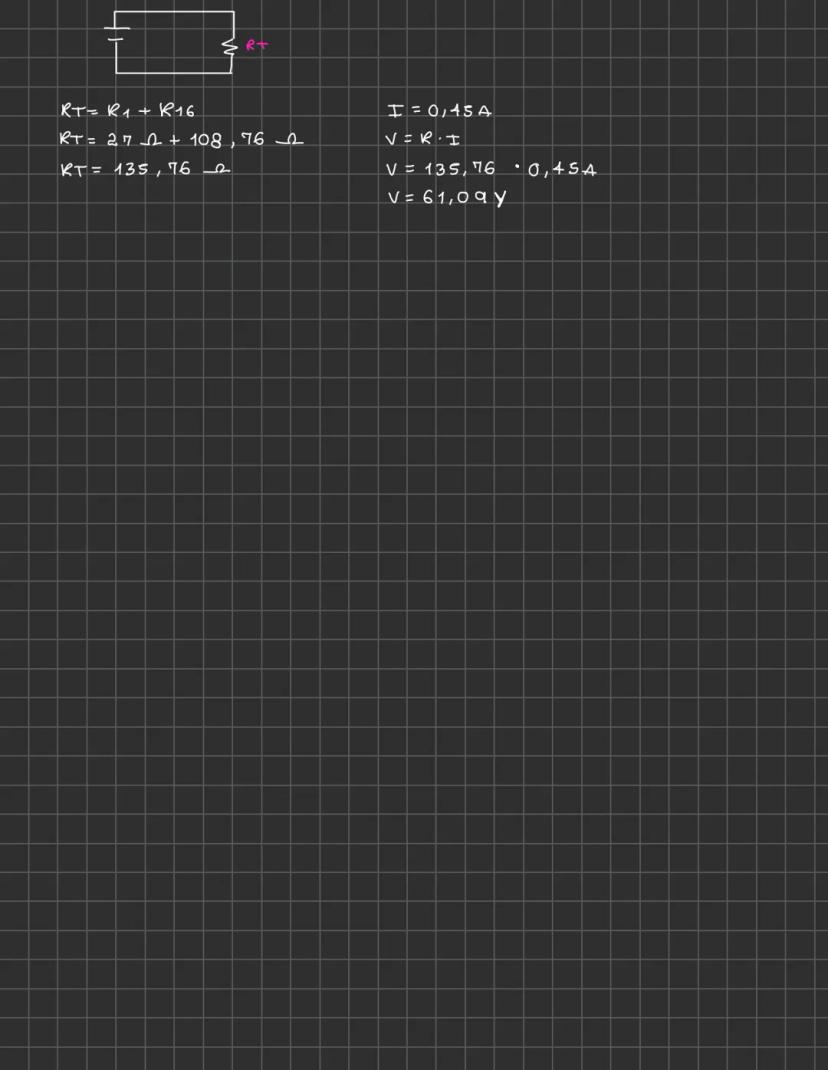

This page concludes the complex circuit analysis problem, bringing together all the concepts and techniques covered in the previous sections. It demonstrates how to use the calculated equivalent resistances to determine the total circuit resistance and ultimately find the required voltage source.

The page begins by combining the equivalent resistances calculated in the previous section to find the total resistance of the entire circuit. It then applies Ohm's law to determine the voltage source needed to produce the specified current through the circuit.

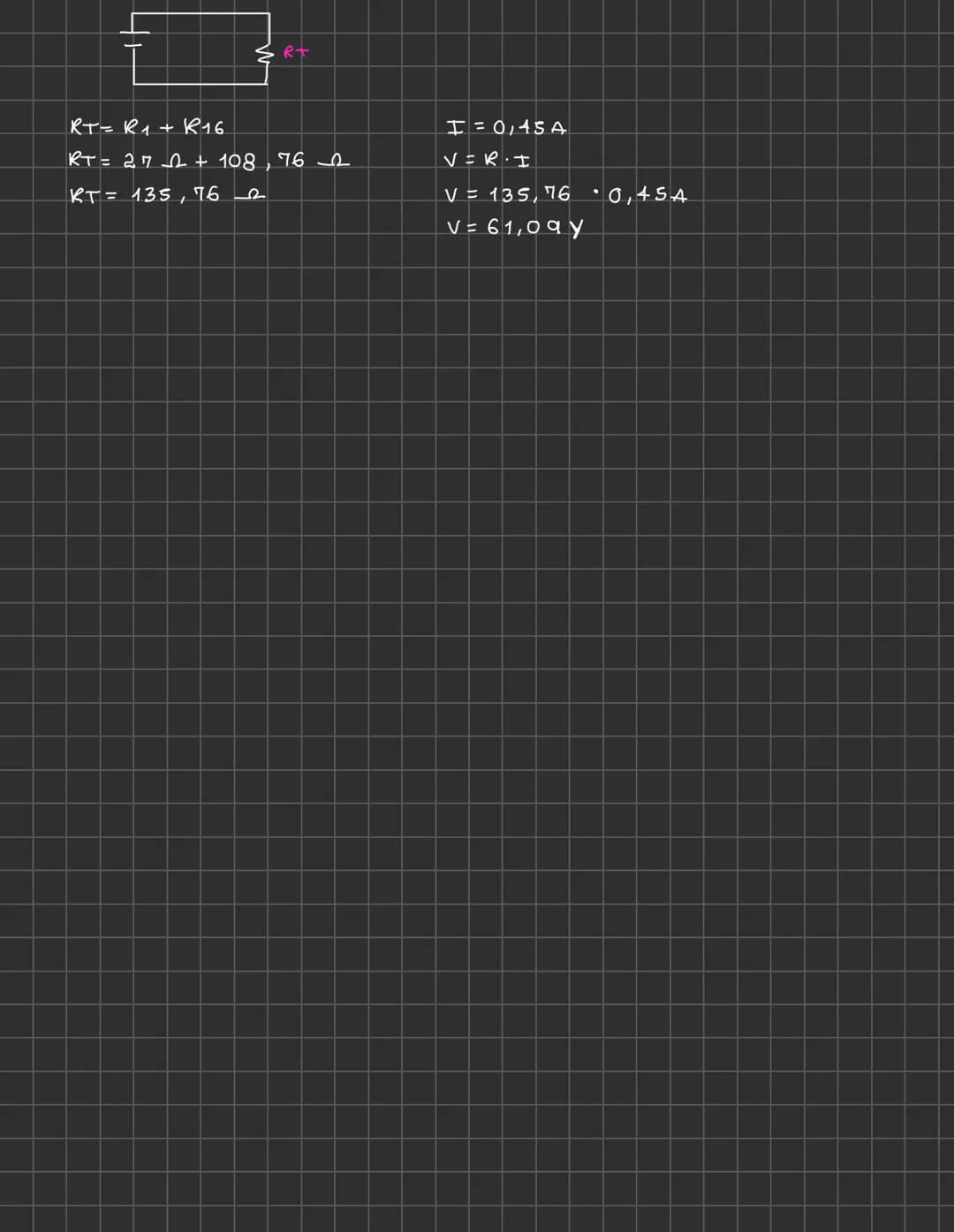

Example: The total resistance of the complex circuit is calculated to be 135.76Ω. Using this value and the desired current of 0.45A, the required voltage source is determined to be 61.09V.

Vocabulary: Presión y densidad ejemplos $Pressure and density examples$ - While this page focuses on electrical circuits, the problem-solving approach is applicable to various physics problems, including those involving pressure and density.

Highlight: The problem demonstrates the practical application of circuit analysis in determining power supply requirements for complex electrical systems.

Definition: Ohm's Law: V = IR, where V is voltage, I is current, and R is resistance.

The page concludes by emphasizing the importance of systematic problem-solving in physics and engineering, showing how complex problems can be broken down into manageable steps. This final example ties together all the concepts covered in the guide, from basic pressure calculations to advanced circuit analysis.

Page 10: Final Circuit Solution

The conclusion of the circuit analysis problem with the final voltage calculation.

Result: Final voltage calculation: V = 61.09 V

Highlight: The importance of systematic problem-solving in complex circuits

Introduction to Force, Pressure, and Hydrostatic Pressure

This page introduces fundamental concepts of force and pressure, with a focus on hydrostatic pressure in fluids. It provides practical examples and calculations to illustrate these principles.

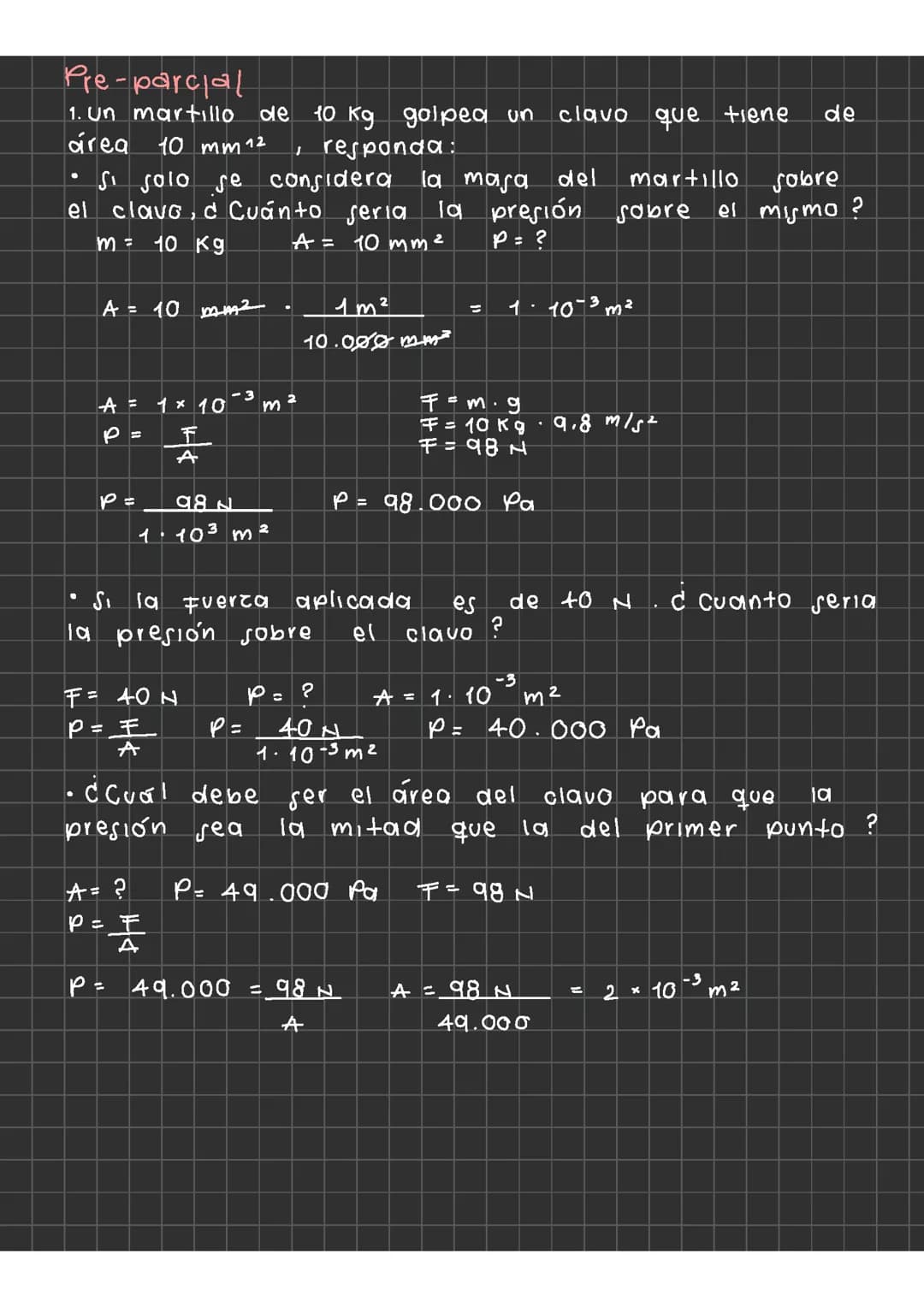

The page begins with an example of a hammer striking a nail, demonstrating the relationship between force, area, and pressure. It then progresses to more complex scenarios involving hydrostatic pressure.

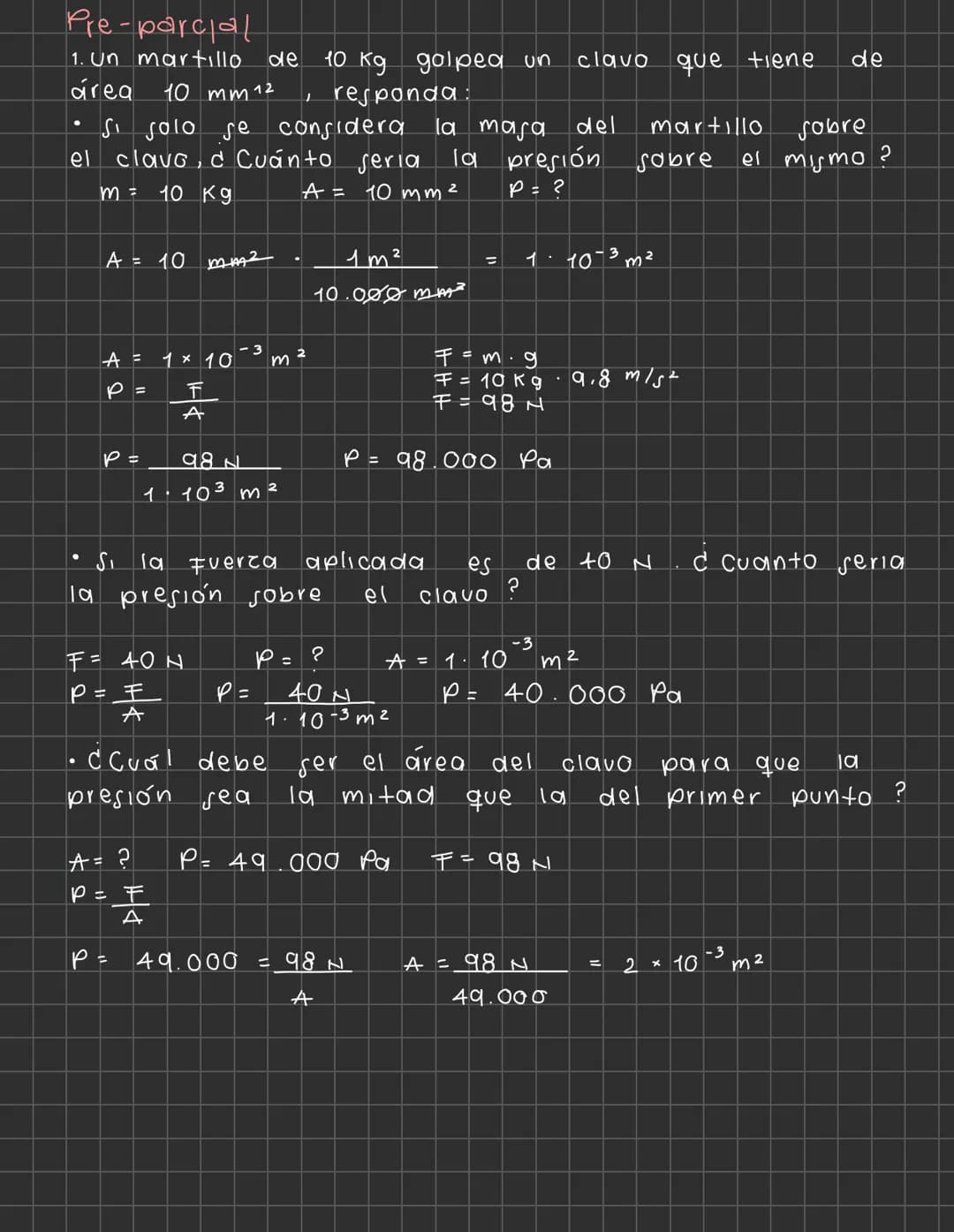

Example: A 10 kg hammer strikes a nail with an area of 10 mm². The pressure exerted on the nail is calculated using the formula P = F/A, where F is the force $mass × gravity$ and A is the area.

Vocabulary: Presión hidrostática $Hydrostatic pressure$ - The pressure exerted by a fluid at equilibrium due to the force of gravity.

Highlight: The page emphasizes the inverse relationship between area and pressure. As the contact area decreases, the pressure increases for a given force.

Definition: Fórmula de presión hidrostática $Hydrostatic pressure formula$: P = ρgh, where ρ is fluid density, g is gravitational acceleration, and h is depth.

The page concludes with calculations demonstrating how to determine the required nail area to achieve a specific pressure, illustrating the practical application of these concepts in engineering and construction.
